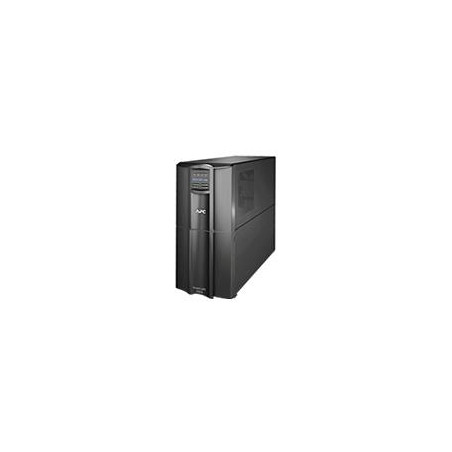

APC SMART-UPS WITH SMARTCONNECT REMOTE MONITORING,PURE SINE WAVE BACKUP AND SURGE PROTECTION

Informacion Comercial:
SMART-UPS DE APC CON SMARTCONNECT REMOTE MONITORING, PURE SINE WAVE BACKUP & SURGE PROTECTION (SMT2200C) PROTECCIÓN DE ENERGÍA DE RED INTELIGENTE Y EFICIENTE DESDE EL NIVEL DE ENTRADA HASTA EL TIEMPO DE EJECUCIÓN ESCALABLE. UPS IDEAL PARA SERVIDORES, PUNTOS DE VENTA, ENRUTADORES, CONMUTADORES, CONCENTRADORES Y OTROS DISPOSITIVOS DE RED.

Informacion Tecnica:
OUTPUT
OUTPUT POWER CAPACITY
1.92 KWATTS / 1.92 KVA
MAX CONFIGURABLE POWER (WATTS)
1.98 KWATTS / 2.2 KVA
NOMINAL OUTPUT VOLTAGE
120V
OUTPUT VOLTAGE DISTORTION
LESS THAN 5%
OUTPUT FREQUENCY (SYNC TO MAINS)
50/60HZ +/- 3 HZ
OTHER OUTPUT VOLTAGES
110, 127
TOPOLOGY
LINE INTERACTIVE
WAVEFORM TYPE
SINE WAVE
OUTPUT CONNECTIONS
(2) NEMA 5-20R (BATTERY BACKUP)
(8) NEMA 5-15R (BATTERY BACKUP)
TRANSFER TIME
6MS TYPICAL : 10MS MAXIMUM
INPUT
NOMINAL INPUT VOLTAGE
120V
INPUT FREQUENCY
50/60 HZ +/- 3 HZ (AUTO SENSING)
INPUT CONNECTIONS
NEMA 5-20P
CORD LENGTH
1.83METERS
INPUT VOLTAGE RANGE FOR MAIN OPERATIONS
82 - 144V
INPUT VOLTAGE ADJUSTABLE RANGE FOR MAINS OPERATION
75 - 154V
NUMBER OF POWER CORDS
1
OTHER INPUT VOLTAGES
110, 127
BATTERIES & RUNTIME
BATTERY TYPE
MAINTENANCE-FREE SEALED LEAD-ACID BATTERY WITH SUSPENDED ELECTROLYTE : LEAKPROOF
TYPICAL RECHARGE TIME
3HOUR(S)
REPLACEMENT BATTERY
RBC55
EXPECTED BATTERY LIFE (YEARS)
43588
RBC QUANTITY
1
